Blu Eye 2 met led display mirror mouth

Emergency services use so-called Tetra radio systems. As soon as the radio in an emergency vehicle is switched on, it periodically transmits ultra-short pulses to antenna masts in the network. These pulses are detected by Target Blu Eye and converted into an alert signal.

As a result, Target Blu Eye makes an important contribution to your safety, the safety of the emergency services and the safety of your fellow road users.

BLU EYE 2 COMES WITH:

Quick start instructions

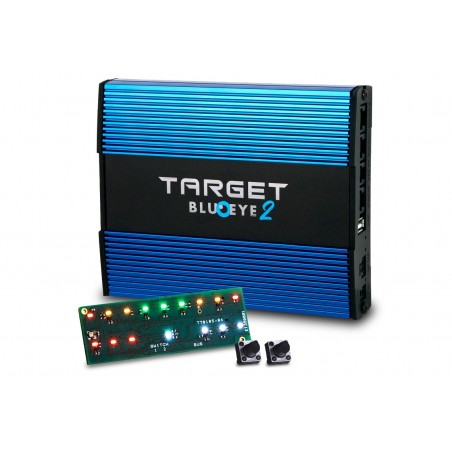

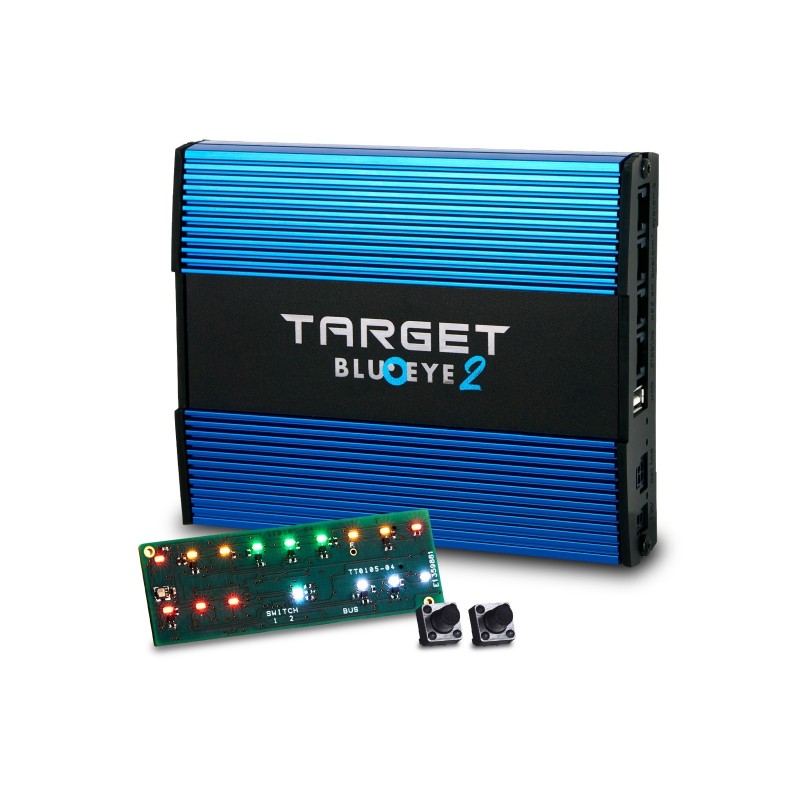

Target Blu Eye 2 receiver

LED display for mounting in the interior mirror (including 2 microswitches and connection cable)

VCD dipole antenna for invisible mounting behind the front or rear bumper

Connection cable between receiver and display

Power cable with fuse

USB drive

TECHNICAL SPECIFICATIONS

Supply voltage: 10 - 16V.

Current consumption: maximum 550mA.

Fuse: 3A.

Frequency range: 380 - 430MHz.

TETRA detection by “Waveform recognition”, no decoding

Temperature range: -20°C - +50°C

Dimensions receiver: 137 x 114 x 32mm. (lxwxh)

Receiver weight: 475 grams

LED display dimensions: 54 x 18 x 5.6mm. (lxwxh)

Weight LED display: 6 grams

Dimensions antenna: total length antenna elements: 345 mm.

ANTENNES

The supplied VCD dipole antenna is suitable for most common situations and ensures good reception results. In the unlikely event that the VCD dipole antenna cannot be used or maximum reception is desired, we offer a choice of the following alternatives:

Modification of the existing sharkfin antenna: a modification of the sharkfin antenna is possible for almost all car makes. This modification can only be carried out by Track Technologies' technicians.

Performance: better than the VCD dipole antenna.

Plate antenna (18 cm long) with angled mounting base. Suitable for mounting on roof or rear spoiler. Performance: better than the VCD dipole antenna.
